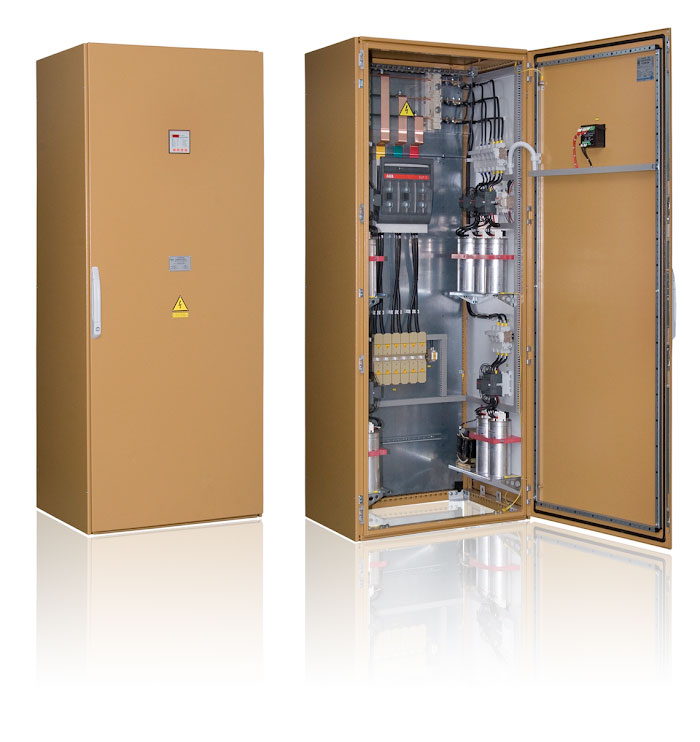

Capacitor Device (CD)

Capacitor device (CD) is designed for reactive power automatic compensation in 380 (415) V (0.4 kV) low-voltage circuits to increase power factor of electric installations and distribution networks, to compensate phase shift in electric network caused by inductive loads (electric motors, transformers, chokes, etc.).

CDs are produced from high-quality components. Elaborate design provides high density of installation and perfect serviceability.

Devices can be adopted for portable and fixed applications.

Technical characteristics

Description	Unit	Value
AC rated voltage (50- 60 Hz)	V	380 (415)
Plant capacity	kVAr	25...600
Power of minimum step	kVAr	2.5...50
Number of control steps	-	5… 12
Power factor control range	-	0.8 of inductive - 0.8 of capacitive
Protection level	-	ІР 43

Overall dimensions of capacitor device

Rated power, kVAr	Value
25...40	600 х 400 х 1000
45...80	600 х 400 х 1200
90...150	600 х 600 х 2000
160...360	800 х 600 х 2000
400...600	1200 х 600 х 2000
