DC Switchgears 600...3300 V. Negative Switchgears

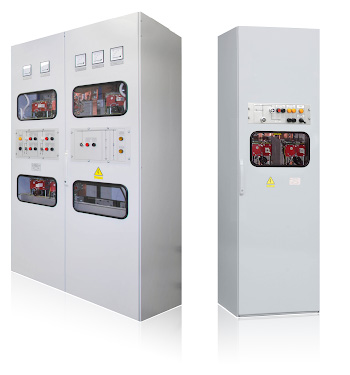

Negative Switchgears are used in city transport and underground traction substations for isolation of negative busbar.

Switchgear design provides:

high reliability and maintainability;
easy access for internal inspection;
convenient access to measuring devices, as well as to components;
maintenance with standard tools

Negative Switchgears for city electric transport (tram, trolleybus) - are subdivided in two types: modular-type and line-type. Modular-type switchgears are provided for rectifiers negative busbars connection to main negative busbar. Negative line-type switchgears are provided for overhead network outgoing feeders connection to substation negative busbar

Technical characteristics

Name of Parameter	Unit	DC Switchgear rated voltage arrangement
		600 V			750 V, 825 V
Negative switchgear type		line	modular		-
Rated voltage of power circuit	V	600			750, 825
Rated current of power circuit	V	1000	2000		4000
Electrodynamic resistance	kA	80	100		100
Test voltage	kV	10
Control		microprocessor	microprocessor, relay
Rated voltage of control circuits	V	110, 220
Rated voltage of lighting DC circuits	V	24
Rated voltage of signaling DC circuits	V	24
Cooling		natural convection
Cycling	per hour	40
Mechanical strength, minimum	cycles	20000	30000	30000
Protection degree		IP43

Switchgear can be optionally designed with parameters altered from stated above
