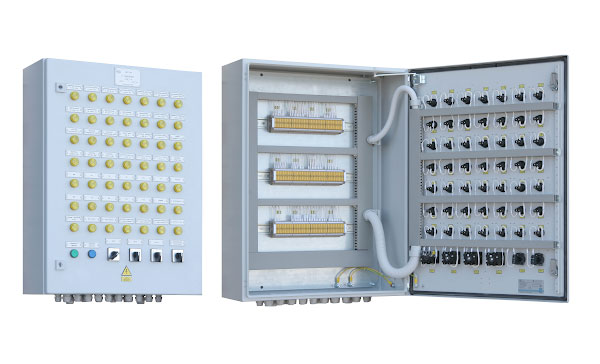

Substation signalling cabinet

Substation signalling panel visualises equipment condition by the means of light signalling. Cabinet comply with the requirements of IEC 60439-1:2003. It includes LED lamps for emergency signals, switches, control buttons, and also terminal blocks to connect external signalling circuits.

Technical characteristics

Description	Unit	Value
Rated input voltage (DC or AC)	V	220 (240)
Test voltage	kV	2
Protection level	-	IP 54
Maximum section of connected wires	mm²	6
Overall dimensions (W x H x D)	mm	600х800х284

Main advantages
