Switch Operation Switchgear with Disconnectors

Switch Operation Switchgear with Disconnectors is designed for operation in metro depot traction network as contact rails feeding circuits switching device.

Design

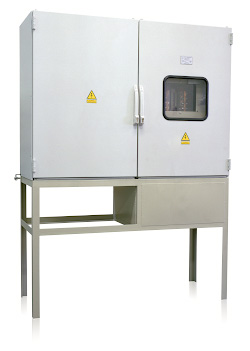

Switch Operation Switchgear with Disconnectors is structurally made in a form of metal two-sectional double-side serviced cabinet. One disconnector type EDT 4000 with visible double break is installed in the right section. Busbar for cables connection is in the left section. The cabinet has doors locked with the help of a key. The right section door is equipped with survey window for disconnector contacts position observation.

The disconnector is installed in the rear of the cabinet; the manual drive is in front. The front and rear parts of cabinet are divided with a panel with survey window. Disconnector drive axis is controlled from reducer.

The cabinet is installed on the basis.

3 cables with section 625 mm2 can be connected to disconnector input busbar.

The cables are input in the cabinet from below through sealed lead-ins. Output busbar is led out from behind the cabinet for connection with contact rail. DC double-pole disconnector, type ЕDT 4000 is a power switching device. The disconnector is used for connection and disconnection of plus circuits in metro depot traction network contact rails supply circuit. Disconnector is controlled with reducer on the assumption of no-load. Reducer handle has fixed extreme positions. Disconnector closing (opening) is done by reducer handle switching to position «Disconnector On» («Disconnector Off»).

Technical characteristics

Name of parameter   Value
Disconnector type
EDT 4000
Rated operating voltage V 1000+-5%
Power circuit rated current A 4000
Lighting circuit rated supply voltage (AC, 50 Hz) V 220/12
Cooling   natural air
Protection class
IP54
Weight, max  kg 400

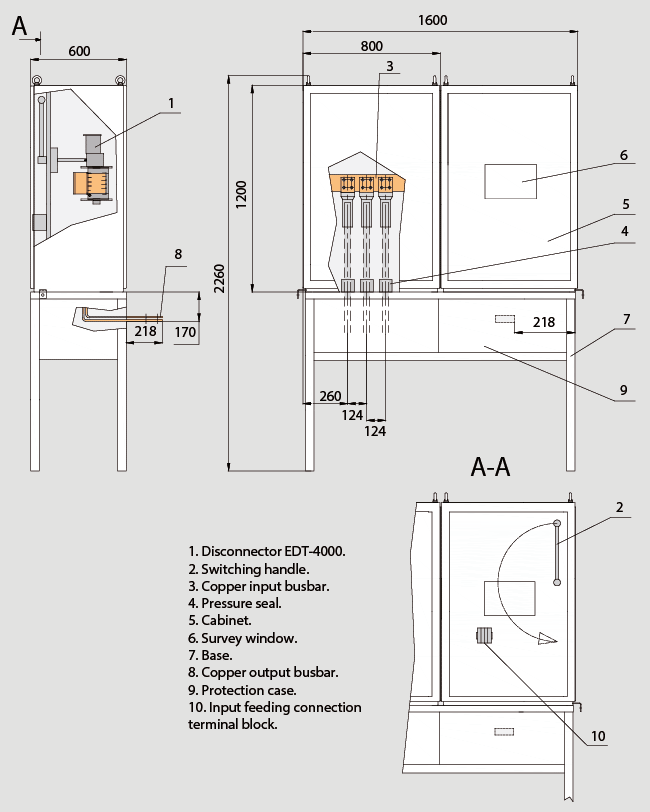

Overall dimensions

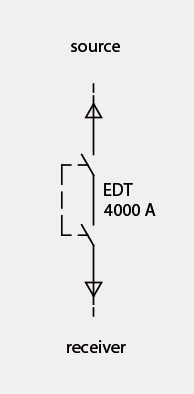

Single-line diagram
