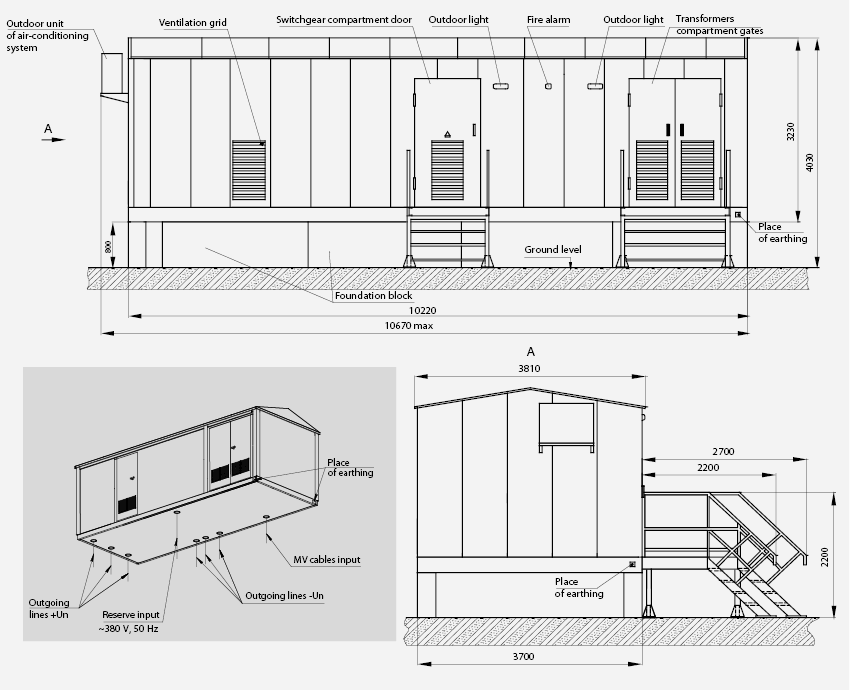

Modular traction substation.  Overall dimensions

Modular traction substation is transported on platforms by road and / or rail. The module design provides facilities for usage of lifting devices.

Modules indoor equipment can not be removed. Ladders, drain, air-conditioning system outdoor unit are transported separately.

Modular traction substation is installed on prepared site - on the foundation (reinforced concrete blocks or other support elements). Such an installation allows fast mounting and dismantling, moving to a new operation place.

This allows significantly to reduce the time and effort required for modular traction substation commissioning. The design provides easy connection of external communication. Modular traction substations are equipped with ladders for easy operation.
