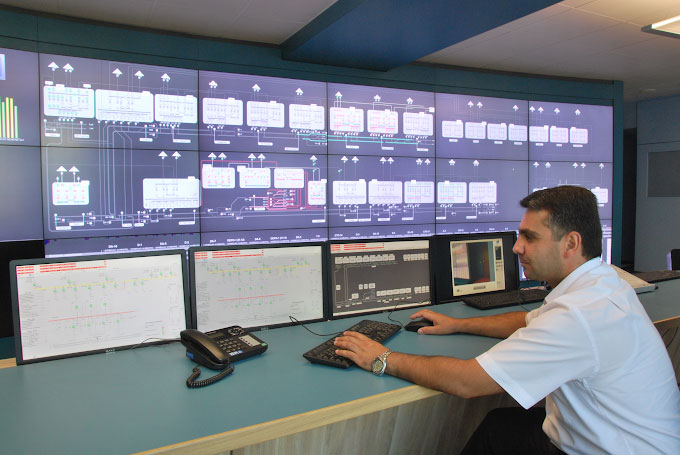

Traction substations automation and SCADA

Hardware selection criteria:

•  Hardware availability in the market;
•  Controllers support international standard PLC IЕС-1131;
•  Controllers support protocol IEC 6070-5-104;
•  Availability of special user software development environment.

Software selection criteria:

•  Support of IEC 6070-5-104 protocol with standard tools;
•  Performance of functions required from the system (data acquisition, storage and processing, redundancy);
•  Easy to maintain and program;
•  Provision of necessary number of parameters;
•  Availability of graphic objects library with possibility of expansion;
•  Support of regional languages;
•  Inbuilt programming language for implementation of difficult computing tasks.

•  number of supervised objects – up to 30;
•  four-level structure;
•  type of I/O signals:

            - discrete I/O signals;
            - analog input signals;

•  time of reaction to unit state transition – up to 5 sec.;
•  time of command transmission to the control unit – up to 3 sec.;
•  time between failures on functions of commands finishing and data acquisition – 50 thousand of hours;
•  certified equipment;
•  licensed software;
•  communication channels:

         - fiber-optic – (speed up to 10 Mb/s)
         - copper line communication channel – (speed up to 1200 bit/sec). Copper line resistance - up to 3 kOhm;

•  operation mode – constant, day and night (7/24);
•  main units power supply:

        - for the 1st control level – 24V DC
        - for the 2nd, 3rd and 4th control levels - one-phase AC network 220 V (+10/-15%) and 50 Hz (± 2%).

•  maximum distance from operations control center to the site- 20 km;
•  measured values transmission accuracy - at least 0,1 %;
•  possibility of false command occurrence - no more than 10-6;
•  protection level - IP 44;
•  operation temperatures range +5…+45 ºС;
•  relative air humidity 40…90 %;
•  in case of ~220 V main power supply absence uninterrupted power supply of system's equipment is provided during minimum 60 minutes.
