DC Power Supply Cabinet

DC power supply cabinet is designed to supply consumers with direct current and serves as uninterrupted power supply source for 220 V DC and 24 V DC circuits. As a rule it is used for uninterrupted operation of equipment at traction substations.

Cabinet includes modern, maintenance-free, heavy-duty batteries with extensive service life. It also includes protection and automatic devices from world-leading manufacturers.

Cabinet is also equipped with several power supplies to support 200 V and 24 V batteries charge.

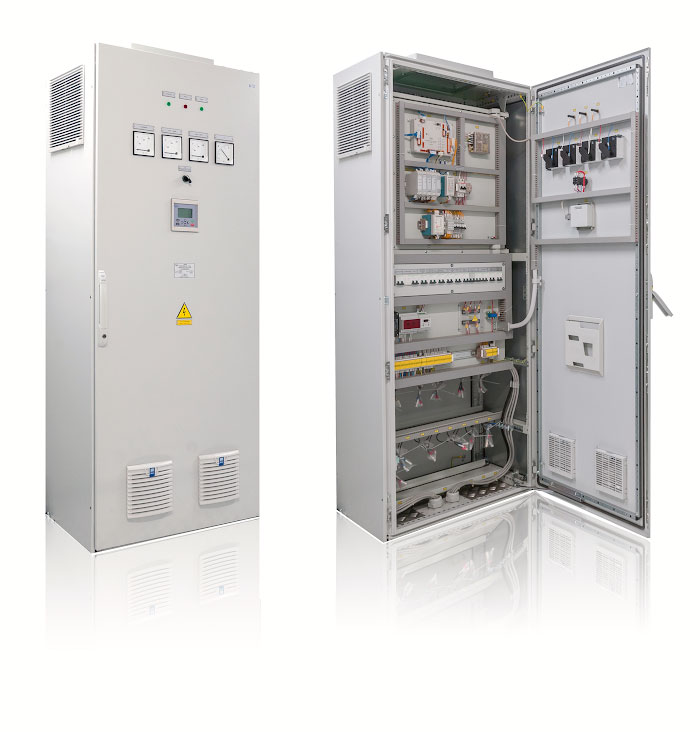

DC Power Supply Cabinet

Technical characteristics

Description Unit Value
Rated voltage of inputs DC (AC, 50 Hz) V 220 (240)
 Rated voltage of auxiliaries, DC
  - at output 1
  - at output 2
V
220 (240)
24
Batteries capacity A/h 12 - 40
Charging device - fixed
Maintenance - single-sided
Protection level - ІР 54
Overall dimensions (W x H x D) mm 800х2000х500
