Switchgear of Contact Rail Feed

Contact rail feeding switchgears are applied for dead-end siding with and without ditch contact rail feeding, for commuting of main-line track orifice plate circuit - dead-end siding orifice plate (maintenance inspection track section).

They power provide supply and distribution with rated current 4000 А.

Main advantages

high degree of unification and reliability,
dimensional parametres decrease,
repair-and-renewal operations time decrease,
easiness in service and handling safety,
visual control for switchgear condition ability.

Design

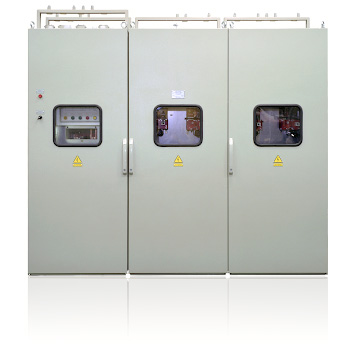

Cabinets are manufactured in RITTAL (Germany) casing and represent double-side serviced three-compartment complete device, including power devices for power distribution (automatic and manual control), control, indication, signaling and protection system.

Disconnectors power bus bars and commuting power part are separated from control zone with mounting panels. There are overview windows on front doors for disconnectors position visual observation.

Connection of power cables to disconnector is provided from the top through cable clamps and special marine pressure seals installed on the roof.

Components of leading world manufacturers, such as АВВ, Schneider Electric, Weidmuller etc., are used in contact rail supply switchgears.

IP-54 protection class.

Technical characteristics

Name of parameter		Value
Power circuit rated voltage	V	750, 825
Power circuit rated current (DC)	А	4000
Rated current of “minus” circuit disconnector and earthing disconnector	A	1000
Light signaling circuits voltage (AC, 50 Hz)	V	220
Motor drive control circuits voltage DC	V	220
Lighting circuits voltage (AC, 50 Hz)	V	220/12
Protection class		IP54
Cyclicity (closing or opening of disconnector with motor drive)	hourly	20
Mechanical stability	cycles	20000
Overall dimensions without base, max	mm	2400 х 2000* х 800
Weight without base, max	kg	780

* Base height is 200 mm. Height of the unit including cables fixing frame is 2240 mm

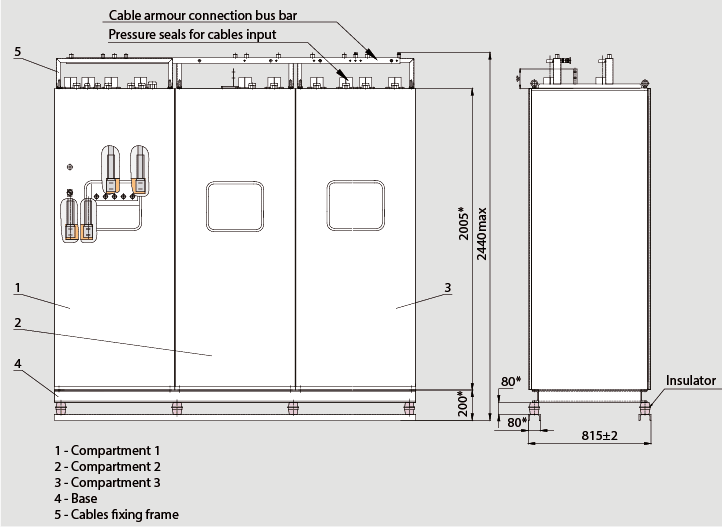

Overall dimensions

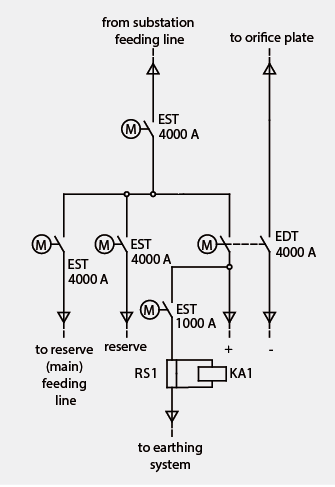

Single-line diagram
